DEQ-2000A

Name: DEQ-2000A
SKU: DEQ2000A
Price: 549.00 AUD
Availability: OutOfStock

$549.00

Overview

Factory audio system just not cutting it? Want that premium audio upgrade but retain the factory source unit and not break the budget? The Pioneer DEQ-2000A is the perfect solution!

Built for audio enthusiasts, the DEQ-2000A DSP processor creates the ideal acoustic space for your vehicle’s characteristics. While retaining your factory car audio system, it adds a variety of adjustment functions, including time alignment, equalizer, and speaker output level.

Sound quality can be adjusted using an intuitive interface on your smartphone or PC, allowing you to enjoy music in an ideal acoustic space tuned to your vehicle’s specifications.

Key features are:

Inputs:
- 4 x Speaker Inputs
- 4 x RCA Inputs
- Bluetooth Ver 5.1 – SBC & AAC
Outputs:
- 6 x RCA Pre-Outs (4V)
- 4 x Speaker Outputs (4 x 40W Nominal)
Channel Summing
96 kHz / 24bit Sampling Rate / 32 bit A/D Converter / 24 bit D/A Converter
31-Band Graphic Equalizer / Parametric Equalizer
3 Filter Modes: Butterworth, Bessel & Linkwitz-Riley
Smartphone Application (iOS & Android)
PC or Smartphone App Tuning
4Ω (2Ω to 8Ω Allowable)
10.5V > 16V Capable
and MORE!

* Connection conditions apply. Read the operational manual/instructions and cautions before use. Pay attention to the road, limit glances to the device, and do not use any feature if it cannot be operated both safely and legally in your location and environment. Distracted driving may result in serious injury, including death. Access to the Pioneer “DSP Controller” app and mobile data required. Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events. Apple and Google are trademarks of their respective owners. This product is a third-party accessory and not an official Apple or Google product. All images may differ from actual appearance. All details are subject to change. Errors and omissions accepted.

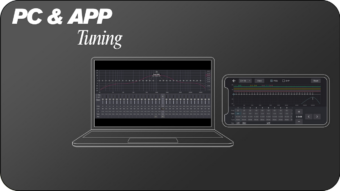

PC & APP TUNING

Download the free dedicated app and software “DSP Controller” and connect it to the “DEQ-2000A.” On a smartphone, you can check each adjustment function with easy-to-understand visuals and intuitively operate it with the touch screen. On a PC, each adjustment function is clearly displayed on one screen and can be adjusted. For example, you can use the pre-set EQ to set the sound to suit your car’s type and preferences, and then fine-tune any areas of concern on your smartphone while listening to music.

PC Software can be found at: Pioneer DSP PC Software

iOS App can be found on the app store: iOS App

Android App can be found on the Google Play store: Android App

Tuning application user guides for both Smartphone and PC can be located in the “Manuals” tab.

INSTALL FLEXABILITY

The DEQ-2000A digital processor is designed for ease of installation, making it easy for anyone to install. Its compact design allows it to be installed in limited spaces inside the vehicle, making it suitable for a variety of vehicle models. Measuring just 200mm wide x 47mm high x 169mm deep, it can be easily installed in tight spaces such as under a seat. An optional speaker line input/output cable is also available, allowing you to easily connect the factory system to the digital processor. This allows you to easily improve the sound quality of your factory system.

PREMIUM DESIGN & HIGH QUALITY PARTS

In addition to the meticulous circuit layout and circuit board pattern, we have carefully selected high-quality parts that enable high-precision signal processing and high-resolution playback. Through thorough tuning, we have achieved the high quality sound we have always strived for. In addition, we have provided a wide range of input and output terminals that allow for the construction of full-scale systems, allowing for a wide range of system deployment. Equipped with a Texas Instruments MAX 80W x 4ch Class D amplifier, the AK4100 features a high-performance Class D amplifier circuit that delivers high-quality audio playback. The electronic processing faithfully reproduces audio source information processed at a high sampling rate, delivering accurate and powerful sound.

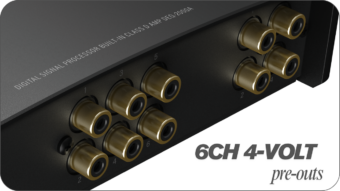

EQUIPPED WITH SIX PRE-OUTS THAT ALLOW YOU TO BUILD A FULL-FLEDGED AUDIO SYSTEM

Equipped with six 4.0V high-voltage pre-outs, it can accommodate a full-scale audio system, including amplifiers and speaker systems. This allows for a wide range of applications, including a standard front/rear four-speaker system or a multi-amplifier/multi-speaker system.

EQUIPPED WITH INPUTS THAT CAN ALSO PLAY EXTERNAL DEVICES

It is equipped with inputs that can play not only source audio such as the original system via speaker input, but also audio sources from smartphones via Bluetooth® connection and audio sources from external devices connected via RCA.

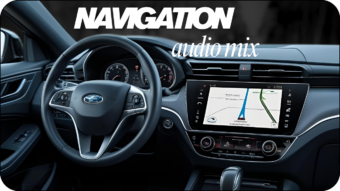

FACTORY NAVIGATION SYSTEM AUDIO MIX

Even while playing other audio sources, you can interrupt the original navigation system audio from the speaker line input. You can also set the music attenuation as with conventional navigation system audio output. You can clearly hear the car navigation system’s voice guidance, so you can enjoy your drive with peace of mind.
