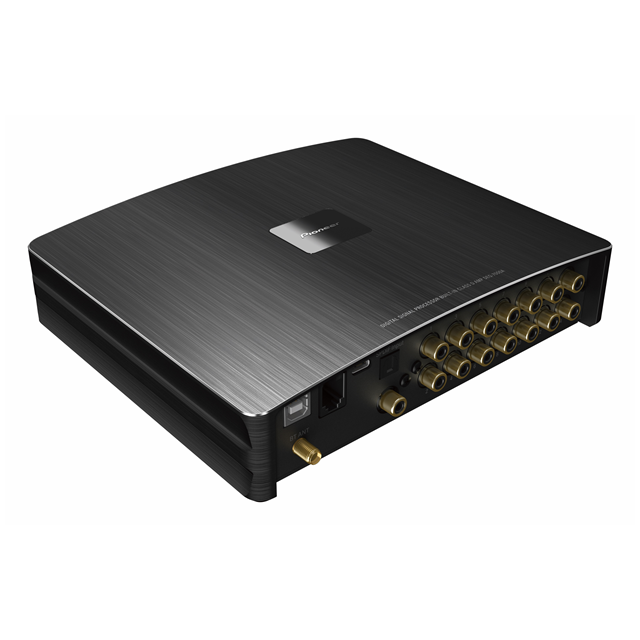

DEQ-7000A
CLASS-D 8-CHANNEL DSP AMPLIFIER
• 480 Watts Nominal Power
• 960 Watts Max Power
• Channel Summing
• 10 x 4V Pre-Outs / 8 x Speaker Outputs
• Hi-Res Audio Certified
• Refined Class-D Design Offers Extreme Efficiency and High-Quality Sound
• Highly Detailed Tuning
• Smartphone App (iOS & Android)
• PC Tuning
$1,149.00
Factory audio system just not cutting it? Want that premium audio upgrade but retain the factory source unit?
The Pioneer DEQ-7000A is the perfect solution! Built for audio enthusiasts, the DEQ-7000A is LOADED with premium features and components.
Key features are:
- Inputs:
- 8 x Speaker Inputs
- 4 x RCA Inputs
- Optical Input
- SPDIF Input
- USB-C (3A)
- Bluetooth Ver 5.1 – SBC, AAC, aptX & LDAC
- Outputs:
- 10 x 4V RCA Pre-Outs
- 8 x Speaker Outputs (Built-In 8 x 60W Nominal Amplifier)
- Channel Summing
- 96 kHz / 24bit Sampling Rate / 32 bit A/D Converter / 24 bit D/A Converter
- 31-Band Graphic Equalizer / Parametric Equalizer
- 3 Filter Modes: Butterworth, Bessel & Linkwitz-Riley
- Hi-Res Certified
- Wired Remote Control
- Smartphone Application (iOS & Android)
- PC and Smartphone App Tuning
- 4Ω (2Ω to 8Ω Allowable)
- 10.5V > 16V Capable
- and MORE!
PC & APP TUNING
Download the free dedicated app and software “DSP Controller” and connect it to the “DEQ-7000A.” On a smartphone, you can check each adjustment function with easy-to-understand visuals and intuitively operate it with the touch screen. On a PC, each adjustment function is clearly displayed on one screen and can be adjusted. For example, you can use the pre-set EQ to set the sound to suit your car’s type and preferences, and then fine-tune any areas of concern on your smartphone while listening to music.
PC Software can be found at: Pioneer DSP PC Software
iOS App can be found on the app store: iOS App
Android App can be found on the Google Play store: Android App
Tuning application user guides for both Smartphone and PC can be located in the “Manuals” tab.
EQUIPPED WITH A HIGH-PERFORMANCE DSP FOR VERSATILE SOUND ADJUSTMENT
By converting the audio signal input from the audio system into a digital signal, the system is equipped with a number of adjustment functions, such as “time alignment,” which adjusts the distance from each speaker to the listening position to correct the time it takes for the sound to reach the listener, and an “equalizer,” which corrects any irregularities in the frequency characteristics within the vehicle to an ideal state. This changes the driver’s seat to an even more optimal listening position.

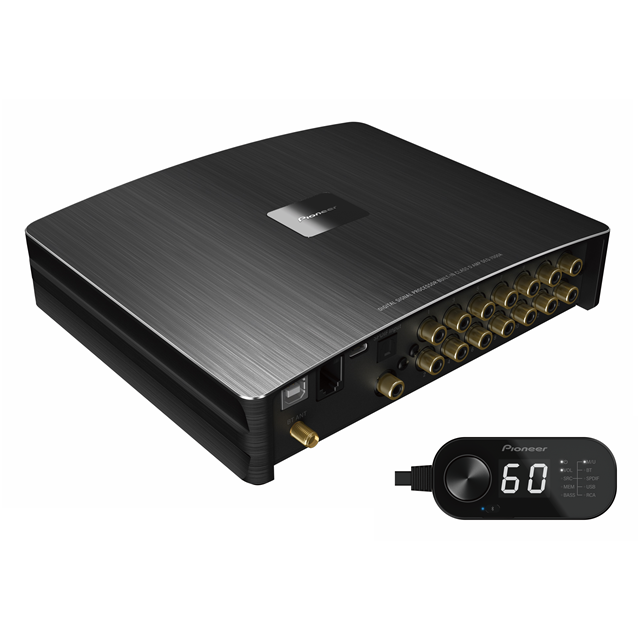

EASY-TO-READ DISPLAY AND DAIL FOR HASSLE-FREE OPERATION VIA WIRED REMOTE CONTROL
The digital processor is equipped with a wired remote control that allows for easy direct operation of music sources connected to the main unit. The streamlined design, while still providing functionality, and the easy-to-read digital display add a stylish touch to the interior of the vehicle.
INSTALL FLEXABILITY
The DEQ-7000A digital processor is designed for ease of installation, making it easy for anyone to install. Its compact design allows it to be installed in limited spaces inside the vehicle, making it suitable for a variety of vehicle models. Measuring just 200mm wide x 47mm high x 169mm deep, it can be easily installed in tight spaces such as under a seat. An optional speaker line input/output cable is also available, allowing you to easily connect the factory system to the digital processor. This allows you to easily improve the sound quality of your factory system.
PREMIUM DESIGN & HIGH QUALITY PARTS
In addition to the meticulous circuit layout and circuit board pattern, we have carefully selected high-quality parts that enable high-precision signal processing and high-resolution playback. Through thorough tuning, we have achieved the high quality sound we strive for. Furthermore, with a wide range of input and output terminals that allow for the construction of full-scale systems, a wide range of system deployment is possible. Furthermore, it is also media-compatible, allowing you to connect a variety of high-quality sound sources and play the pure sound of music.
Equipped with a Texas Instruments MAX 60W (Nom) x 8ch Class D amplifier, the AK4100 features a high-performance Class D amplifier circuit that delivers high-resolution playback. The electronic processing faithfully reproduces audio source information processed at a high sampling rate, delivering accurate and powerful sound.
EQUIPPED WITH TEN PRE-OUTS THAT ALLOW YOU TO BUILD A FULL-FLEDGED AUDIO SYSTEM
Equipped with ten 4.0V high-voltage pre-outs, it can accommodate a full-scale audio system, including amplifiers and speaker systems. This allows for a wide range of applications, including a standard front/rear four-speaker system or a multi-amplifier/multi-speaker system.
ENJOY HIGH-QUALITY SOUND ACROSS A VARIETY OF MEDIA
In addition to audio sources such as factory system with RCA or speaker input, it can also directly play audio from smartphones via Bluetooth®, which supports high-resolution audio. It also comes equipped with a USB-DAC input that supports the connection of digital audio players, allowing for the playback of a variety of media.
“HI-RES” AUDIO CERTIFIED
Pioneer’s new DEQ-7000A Class-D DSP amplifier is equipped with high quality sound components and tuning and is compatible with “Hi-Resolution” audio allowing simply the highest quality sound reproduction! The perfect partner to Pioneer’s exclusive “Special Edition” speaker range!
*The product with Hi-Res AUDIO logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. The logo is used under license from Japan Audio Society.
FACTORY NAVIGATION SYSTEM AUDIO MIX
Even while playing other audio sources, you can interrupt the original navigation system audio from the speaker line input. You can also set the music attenuation as with conventional navigation system audio output. You can clearly hear the car navigation system’s voice guidance, so you can enjoy your drive with peace of mind.
- Compatible with “Apple CarPlay” and “Android Auto™”
- In addition to speaker line input, it can also be set for RCA input.
