SPH-EVO109DAB

DOLBY ATMOS®

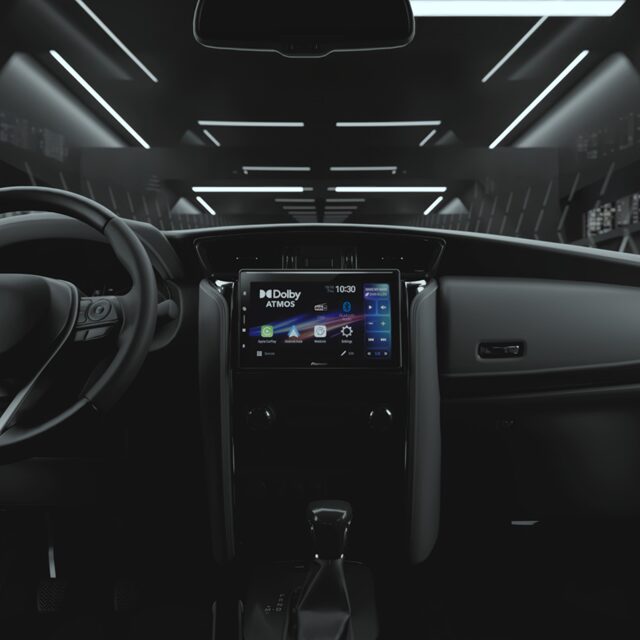

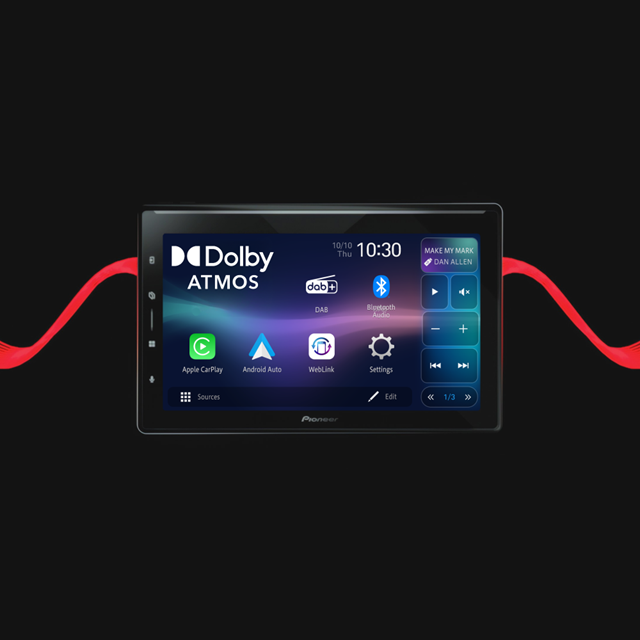

Enjoy immersive, multi-dimensional sound that surrounds you—making every drive feel like a live concert. No extra speakers needed. With a massive catalogue of Dolby Atmos® content available on Apple Music, Apple Music Classical and Audible, your in-vehicle experience has never been so amazing!

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

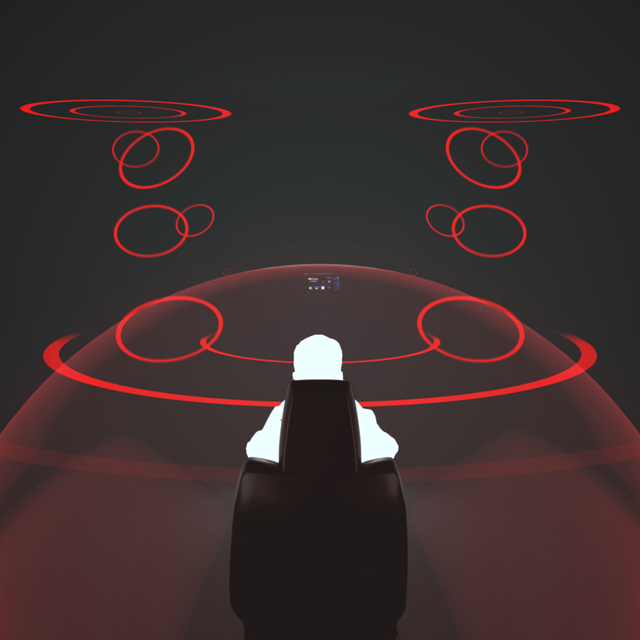

SPATIAL AUDIO

No Dolby Atmos®? No problem. The SPH-EVO109DAB’s advanced Stereo Spatial Sound imaging intelligently analyses standard two-channel (stereo) sources in real-time, expanding the soundstage for a more immersive, multi-dimensional listening experience.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

PIONEER AUTOTUNING WITH SEAT CALIBRATION

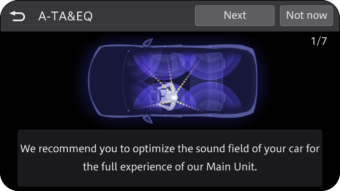

Pioneer’s exclusive Auto Tuning technology analyses your car’s interior and intelligently calibrates timing, volume, and frequency response, to place you at the centre of the experience. Control your soundstage with a single tap. Select your exact seating position, instantly re-optimizing the spatial audio calibration so that any passenger can become the focal point of the music.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

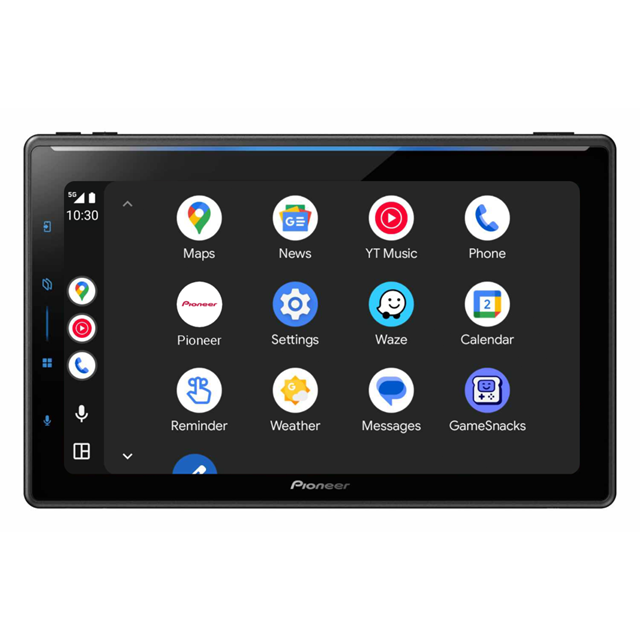

BIG 10.1″ HD DISPLAY

The new Pioneer 10.1″ HD (720P) capacitive screen is able to produce high-definition images. Utilising a high brightness display and high proximity panel construction allows for a bright easy to read display with wide viewing angle.

LUMINOUS BAR

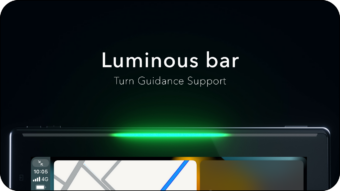

The new Pioneer “Luminous Bar” provides users with:

• An intuitive turn guidance support when using select navigation apps in Apple CarPlay® or Android Auto™
• A customisable ambient light to match your key lighting
• Notification of activation of voice assistant when using Apple CarPlay® or Android Auto™

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events. Luminous Bar turn guidance support not available on all navigation apps. Please refer to your nearest authorised Pioneer dealer for more information.

PIONEER PREMIUM QUALITY SOUND

Pioneer continues it’s ongoing commitment to finding new design methods, part sourcing and industry leading technologies to ensure an in-car experience like no other. From premium capacitors and a full-custom high-performance 48-bit dual-core DSP to our Advanced Sound Retriever and time alignment technology, we are sure you will be impressed!

APPLE CARPLAY® (WIRELESS OR WIRED CONNECTION)

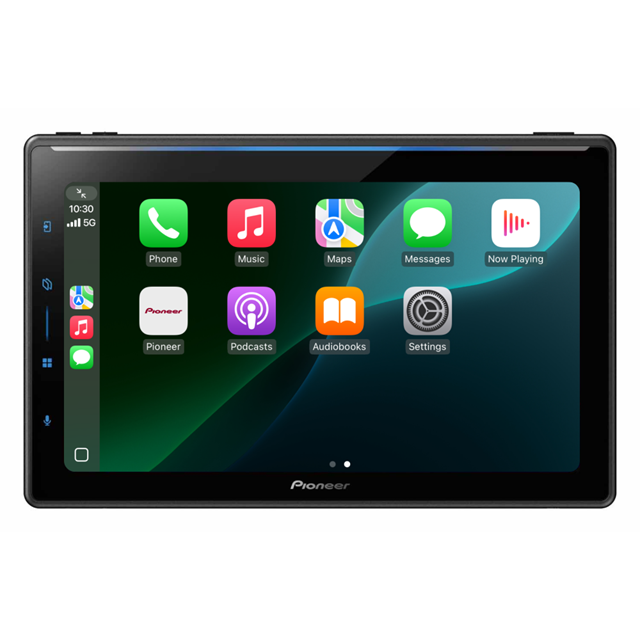

The best iPhone® experience on four wheels; Apple CarPlay® is a smarter, safer way to use your iPhone® while you drive. You can get directions, make calls, send and receive messages, and enjoy your favourite music. You can even connect wirelessly to stay focused on the road.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

ANDROID AUTO™ (WIRELESS OR WIRED CONNECTION)

Enjoy seamless connectivity and control of your compatible Android™ smartphone in the car. Android Auto™ is a simpler, safer way to use your phone in the car.  Get all your favourite maps, media, and messaging apps on your car display.

To use Android Auto™ on your car display, you’ll need an Android phone running Android™ 8 or higher, an active data plan, and the Android Auto™ app. To wirelessly use Android Auto™ on your car display, you need a compatible Android™ smartphone with an active data plan. You can check which smartphones are compatible at g.co/androidauto/requirements. Some features and devices may not be available in all countries. Subject to availability. Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

IDATALINK® MAESTRO™ COMPATIBLE

Keep your factory features and expand your level of in-vehicle connectivity with Pioneer receivers and iDataLink® Maestro™ RR or RR2 integration interface. When your SPH-EVO109DAB receiver is installed in a compatible vehicle using the iDataLink® Maestro™ RR or RR2 integration interface# (sold separately), you’ll be able to enjoy the performance and features of the SPH-EVO109DAB receiver plus touchscreen control over key factory audio features.

The SPH-EVO109DAB supports factory functions via the iDataLink® Maestro™ RR or RR2 integration interface including, Steering Wheel Controls, Media Player (including the factory AUX-in and USB ports), Hands-Free Telephone, Voice Commands, Secondary Display Support, Visual parking assistance, HVAC 1 or 2 compatible, Multi-camera control*……and more! For more information on iDataLink® Maestro™ products please follow the following link: iDataLink Maestro Australia

*Images will vary dependant on AV receiver, camera system and vehicle. # iDataLink® Maestro™ interface sold separately. Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

SPLIT SCREEN FOR APPLE CARPLAY®

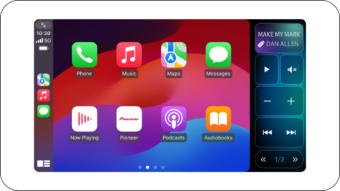

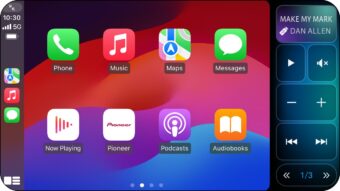

You can now display Apple CarPlay® and the receiver’s menu at the same time on one screen. This function is useful such as when you want to operate the music (i.e. Radio or USB) while looking at the map screen.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

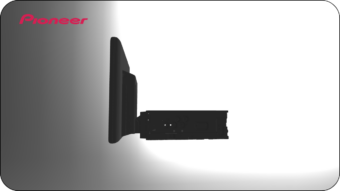

“FLOATING/SEPARABLE” DISPLAY

The design of the SPH-EVO109DAB structure is unique, combining a universal 1-DIN size chassis with a large 10.1-inch display that can be configured for installation either as a floating mount type applicable to most vehicles¹ or as an in-dash flush mount type in specific compatible vehicles².  When installed as a floating mount type, the screen offers horizontal, vertical and tilt adjustability to ensure the best fit and usability in the vehicle’s dash*.

* In-dash type flush mount capability varies by vehicle and/or third-party installation kit availability, sold separately. Custom mount not provided. Limited cable length available.

WEBLINK® & WEBLINK® CAST

WebLink® 3.0 enables a compatible smartphone with the WebLink® Host app installed to display and control compatible third-party applications from the in-dash receiver touchscreen⁴.  WebLink® compatible apps provide services such as turn-by-turn navigation (i.e. Waze®), point of interest information and reviews, restaurant reservations, music entertainment, and more⁵. WebLink® enables this Pioneer receiver to deliver a modern infotainment system.

Additionally, with the built-in WebLink® Host application and a USB connection, drivers can also use the WebLink® Cast feature to mirror and interact with their iOS or Android smartphone’s screen on the receivers’ displays and access virtually all the same powerful navigation, communication, productivity and entertainment apps on a bigger screen and driver-friendly format.

For more information please follow the link: WebLink

The compatible smartphone must be connected to a compatible Pioneer receiver via USB and Bluetooth simultaneously to enable full WebLink® functionality. Certain apps may restrict some functions, such as video and music playback. Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events. WebLink® is a registered trademarks of Abalta Technologies, Inc. WebLink® Cast is a trademark of Abalta Technologies, Inc. Yelp, Yelp logo and related marks are registered trademarks for Yelp. Waze® is a registered trademark of Google LLC.

PxLink APP

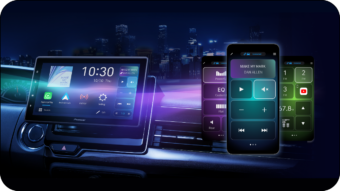

With the new Pioneer “PxLink” smartphone app users can customize the display on their compatible multimedia receiver including adding your own background image, perform OTA (Over The Air) firmware updates, customise “Shortcut” key layout, other App launching as well as control you compatible AV receiver from your smartphone*. Pioneer is putting the control in your hands!

*Access to the Pioneer PxLink app and mobile data required. Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.
